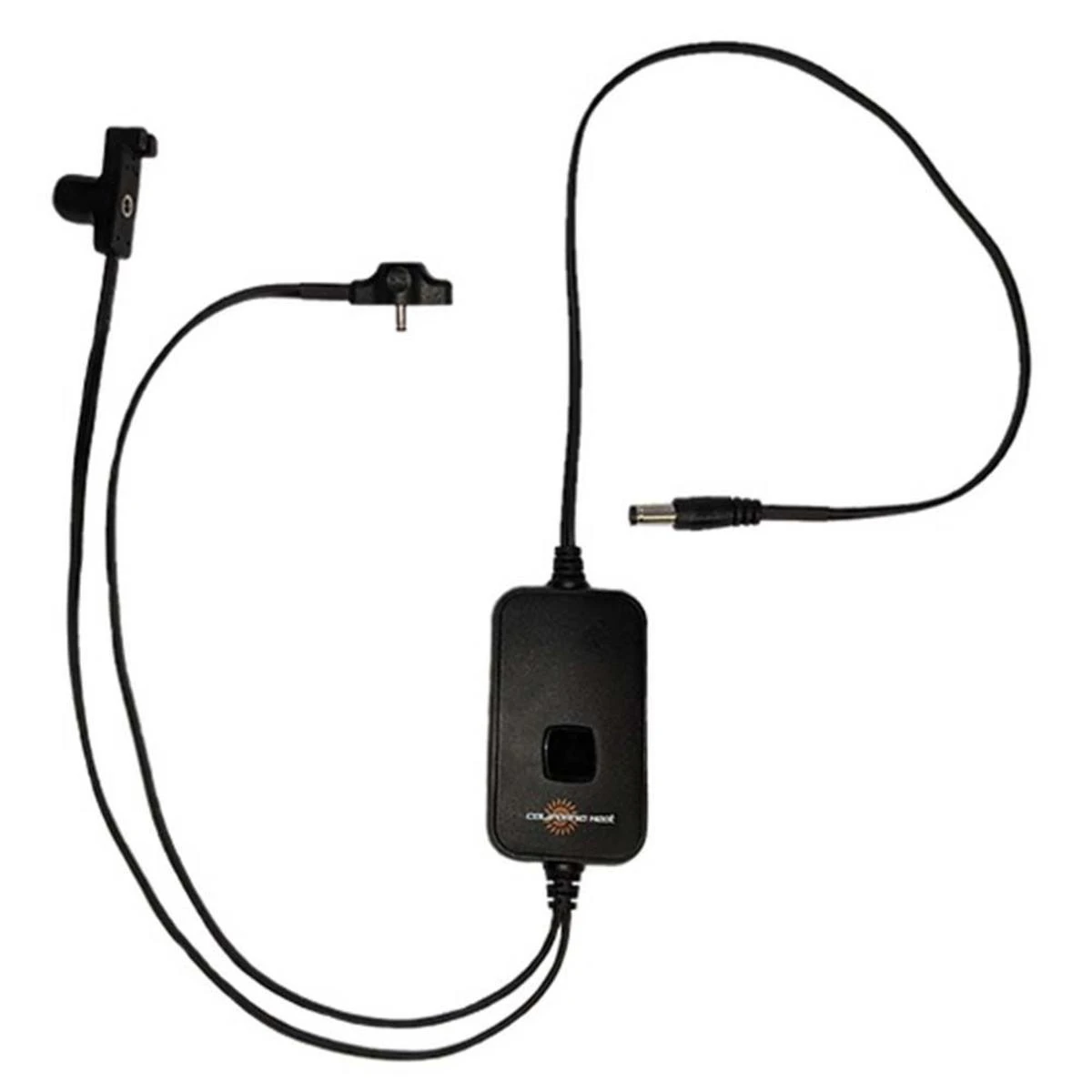

California Heat Hybrid Heat Controller

With the Hybrid Heat Controller you can now power 7V battery-powered heated gear using a Motorcycle, Powersport Vehicle, or any 12V Accessory Port.

Features:

• Hybrid Heat Controller you can now power 7V battery-powered heated gear using a Motorcycle
• Powersport Vehicle
• Any 12V Accessory Port

3 WAYS TO USE:

• 1. Use a 12V power source to heat a 7V battery-powered item OR a pair of gloves/socks (using a 7V y-harness)
• 2. Use a 12V power source to charge a 7V battery
• 3. Do both at the same time!

INFO:

• Connect to a 12V motorcycle or vehicle battery using a 12V Battery Harness OR 12V Accessory Plug OR 12V SAE-COAX Female
• Compatible with other 7V battery-powered brands that use the same plugs, including push-button heated gear
• Charge other brand 7V batteries that use the same plugs
• A dead (fully discharged) 7V battery takes 4-5 hours to fully charge while connected to a 12V power source
• If the controller is disconnected from a 12V power source, the 7V battery will begin powering the 7V clothing – simply turn on the battery then use the controller to change the temperature settings
• Three heat settings:
  • LED LIGHT(Temperature Setting) : Blue(Low) Amber(Medium) Red(High)

SPECS:

• Input – Connected to 12V Battery: 11V-16V DC
• Output 1 – Charging 7V Battery: 8.4V 1.5A
• *Output 1 becomes a 7V Input powering Output 2 when it is connected to a charged 7V battery but NOT connected to a 12V power source
• Output 2 – Powering 7V Heated Product: 7V 2A max with three output settings (33%-66%-99%)

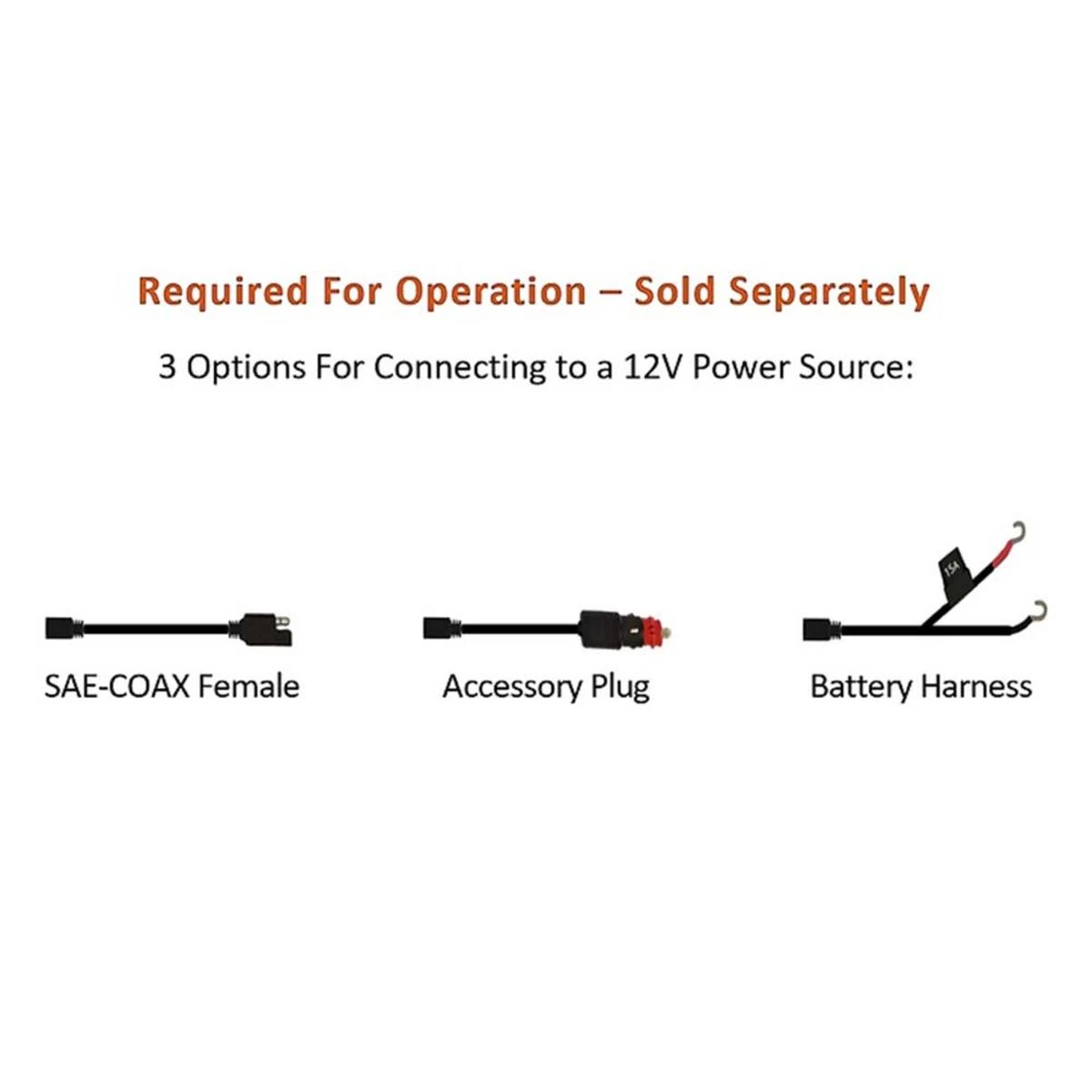

REQUIRED FOR OPERATION (sold separately):

• 3 Options For Connecting to a 12V Power Source:
• 12V Battery Harness OR 12V Accessory Plug OR 12V SAE-COAX Female

WARRANTY : All controllers are covered by a 2 year warranty. See the Warranty Info page for details.

WARNING: Failure to use product(s) as instructed or alter them in any way could result in damage to the products, cause them to malfunction, and/or cause bodily harm.

HOW TO USE:

• 1. Turn on your 12V power supply
• 2. Connect the male coax plug to a 12V Battery Harness or 12V Accessory Plug or 12V SAE-COAX Female
• 3. Connect the female 7V plug to your 7V heated clothing item — for gloves or socks, connect to the 7V Y-Harness
• 4. (Optional) Connect the male 7V plug to a 7V battery to charge it
• 5. Hold down the controller button until it lights up blue
• 6. Hold button again for ~2 seconds to toggle between each temperature setting
• 7. To turn off, hold down the button until the light disappears

TROUBLESHOOTING :

If the LED light is blinking blue OR the controller turns off, the controller is in safe mode due to short-circuiting or has been overloaded.

To fix this issue, have your 12V power source turned on, unplug the controller, then plug it back in. The controller should now function properly.
